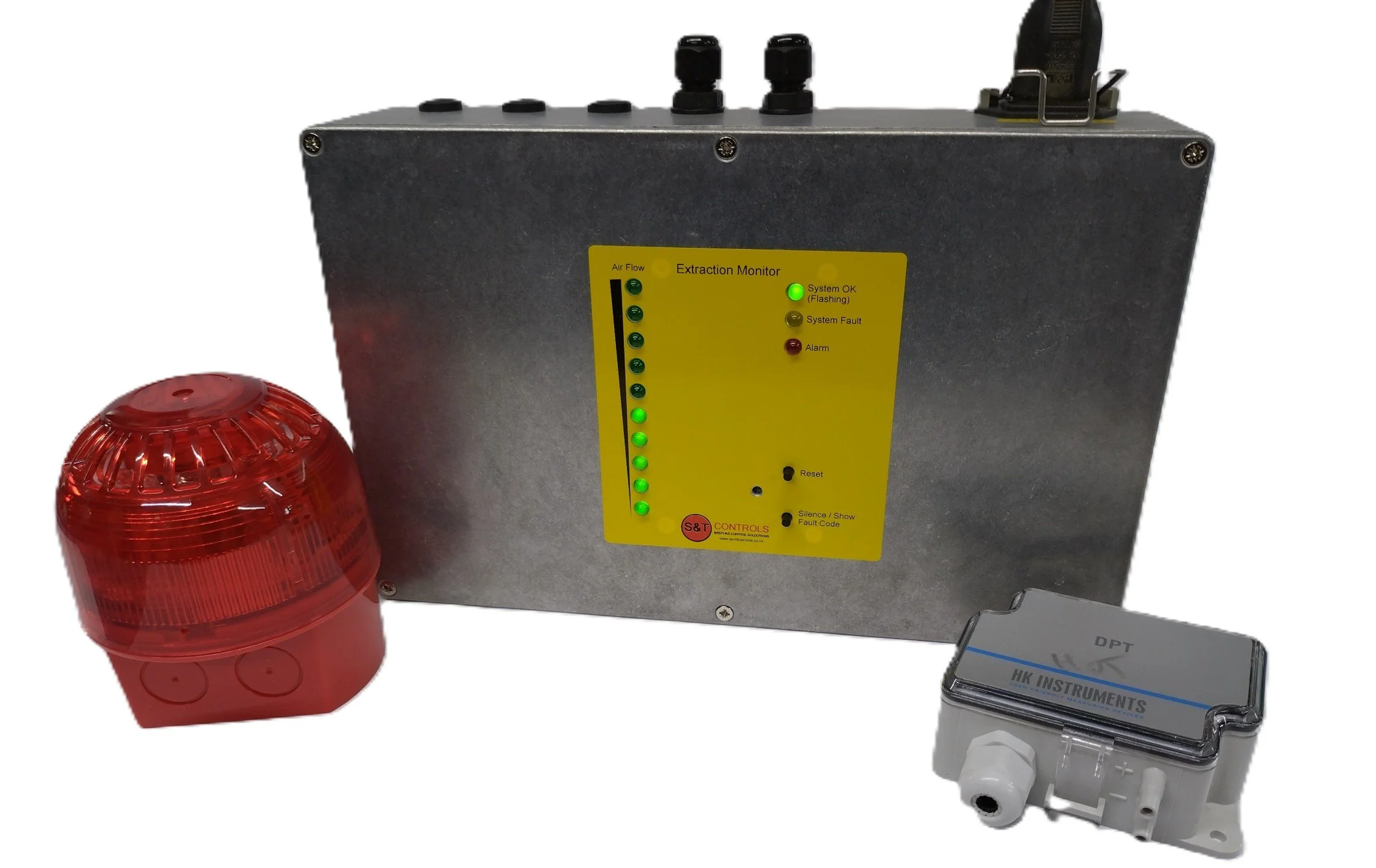

Industrial Extraction & Process Monitor

This unit was engineered to safeguard industrial environments by monitoring extraction flow and alerting users if levels drop below safety standards.

Using a Pitot tube and differential pressure transducer, the system accurately calculates air speed using a customizable sampling rate (average or peak reading).

Beyond local visual alerts —including an LED bar graph and fault-monitored siren/beacon outputs— the unit integrates seamlessly into larger Building Management Systems (BMS) via 4-20mA and 2-10V signal outputs.

While originally deployed for airflow monitoring, the architecture is designed as a universal monitoring solution. It accepts any standard 0-10V or 0-20mA analogue input, making it adaptable for monitoring temperature, pressure, or humidity in diverse industrial applications.

Available in mains-powered or battery-backed 24VDC variants.
